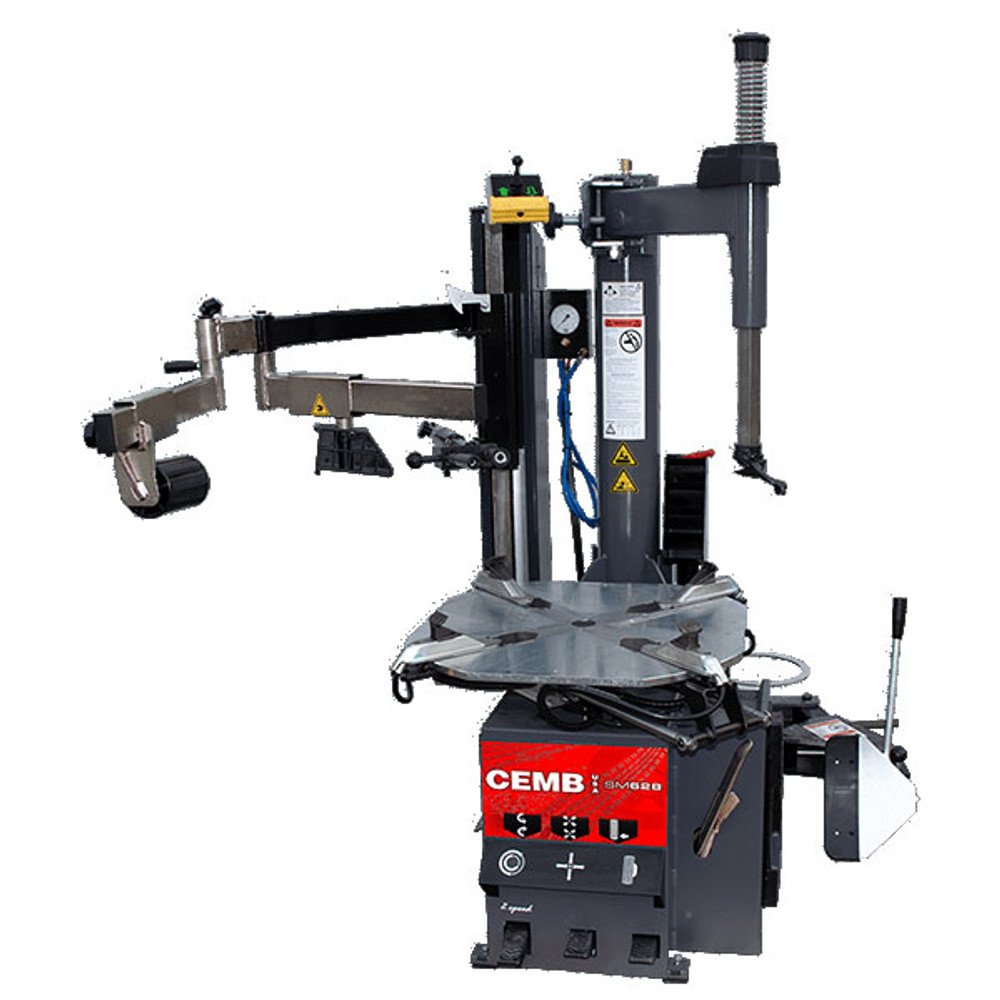

- North American design adapted to tall and wide tires handles virtually all wheels up to 44″ and 15″ in width. Outside clamps rims from 12″-26″ and is self-centering with rim diameter indexing guides
- Standard quick-change mount head kit provides steel and polymer long-wearing mounting heads
- Self-centering clamping jaws with high-quality dual air cylinders; uniform clamping pressures and high clamping force reduce the possibilities of rim slippage
- Add a high-performance BPS (Bead Press System) for simple servicing of stiff side wall tires and deep drop center rims
- Heavy duty, high torque, 2-speed (8-15 rpm) 220V motor easily handles the mouse difficult sidewall tires and deep drop center rims
Specifications
| Power Supply | 220V, 1ph, L6-20P |
| Air Pressure | 145 psi (10 bar) |
| Rim Diameter (Ext.) | 12″ – 26″ |
| Tire Diameter | 44″ |
| Max. Wheel Width | 16″ |
| Turn Table Speed | 8-15 rpm |
| Shipping Weight: | 630 lbs (286 Kg) |
